OPC UA : TAG Configuration

Tags Configuration:

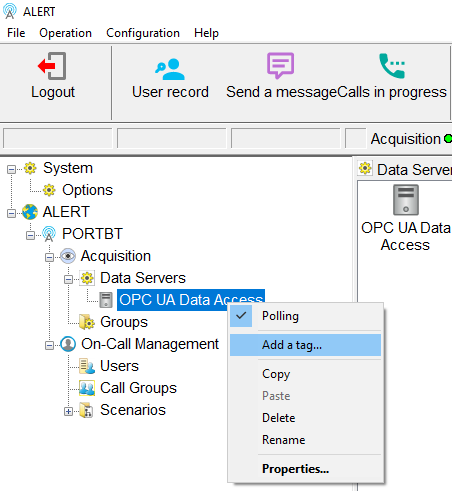

In order to access the tags of OPC UA server in ALERT, right-click on the newly created "OPC UA Data Access" data server:

Click on "Add a tag..."

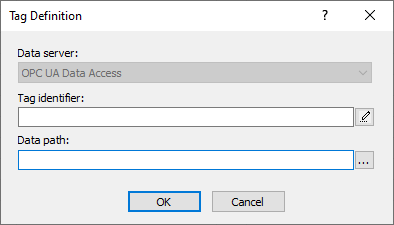

Click on "..." button at the right of the "Data path:" field:

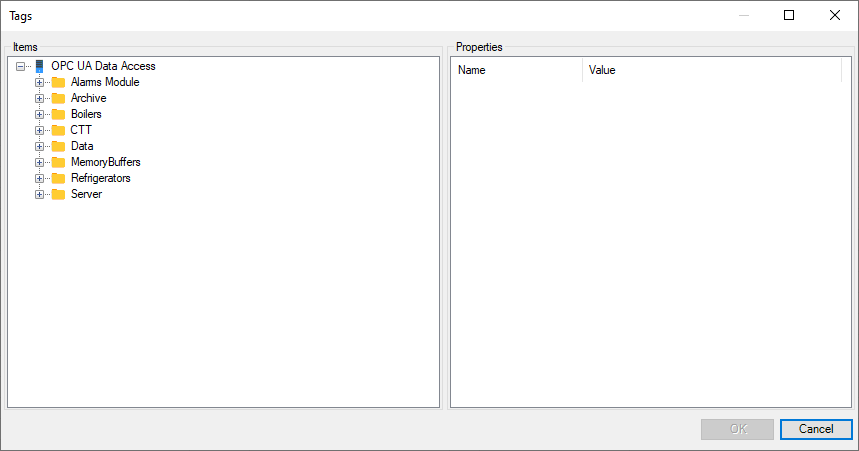

Navigate in the tree structure to display the tag associated to the group of the right part:

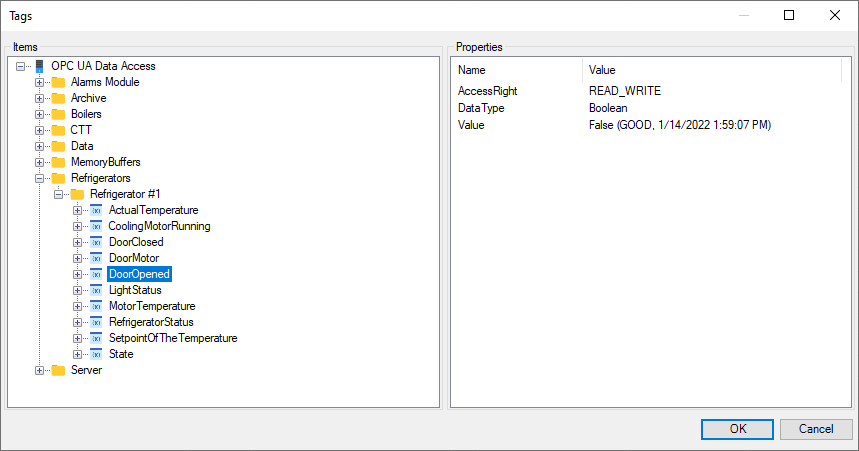

Select the tag to be monitored, then click on “OK” button:

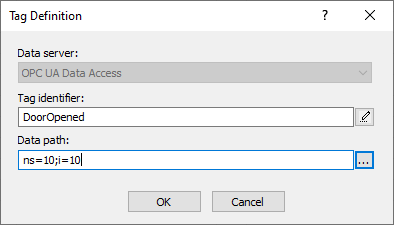

Click on "OK" button:

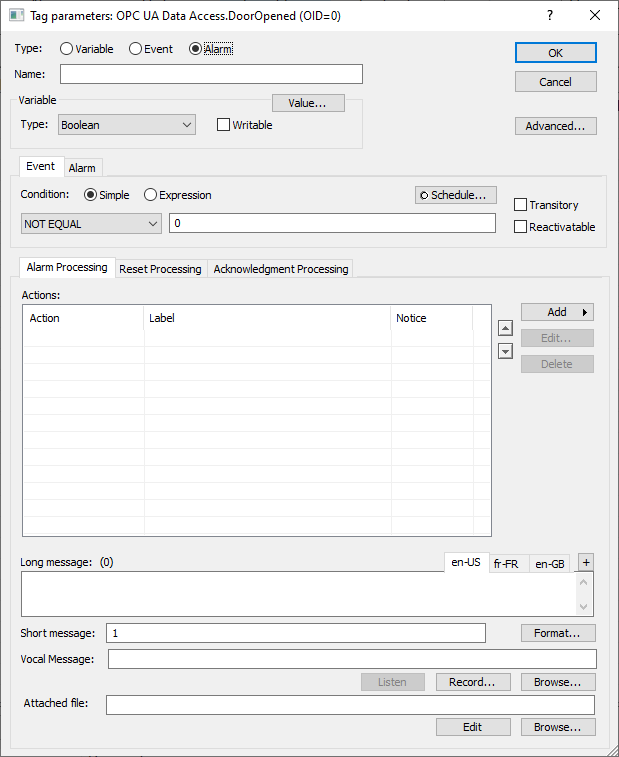

Setup the alarm parameters:

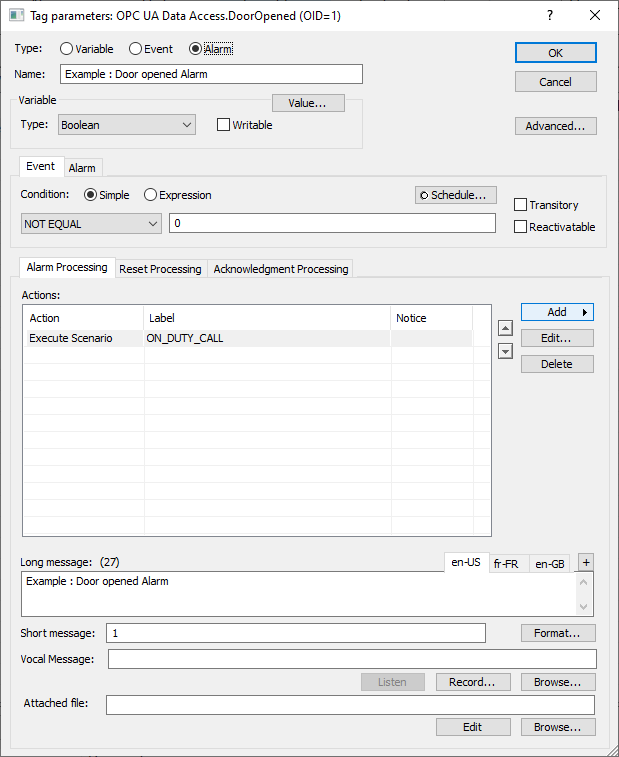

Click on "OK" button to create the tag:

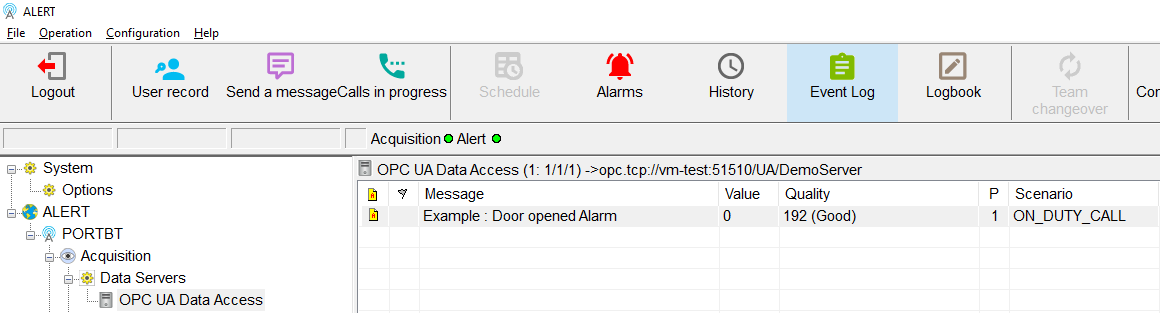

The tag is displayed into ALERT :
